Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Name: Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding
Brand: HanWei
Price: 1 USD

Wholesale Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding from china suppliers

Brand Name : HanWei

Model Number : HW-20-60150

Certification : CE, FDA

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 6000 Set per year

Delivery Time : 5 work days

Packaging Details : Welding head: 9Kg. 39*22*29cm. Wire feeding device: 17Kg. 70*40*65cm. Paper Box.

Product Name : Handheld Welding Head Single Motor

Head Weight : 0.7 Kg

Laser Shape : Line "-"

Laser Frequency : 400 Hz

Welding Bead : 0.5-5mm Adjustable

Cooling Method : Water Cooling

Contact Now

Wobble Laser Welding For Aluminum Door And Window Welding Aluminum Wire Feeding

Wobble Laser Welding Description:

Wobble Laser welding is a new and advanced welding method, it is one of important aspects in material processing technology application.

Wobble Laser Principle and Advantages:

During welding, the welding gun swings left and right at a certain frequency, causing the welding joint to form a certain wave shape, thereby increasing the width and depth of the welding joint.

The central part of the welding head has a higher temperature, while the temperatures on both sides are lower. By swinging the welding gun left and right, the heat distribution of the welding head can be more uniform.

The single motor wobble handheld welding is new welding type of laser welding field, the laser beam can be swing by motor lens to form more widely welding width and depth.The working principle is : Through the swing beam to reform output laser beam shape to get the output beam size more bigger and more stronger penetrating power.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Handheld Welding Head Specification:

Product Name	Handheld Welding Head
Usable Laser Power	1000W-3000W
Laser Source	Fiber Laser Source
Interface type	QBH
Accessible wave range	1064 nm
Net weight	0.7 kg
Laser head size	216*287 mm
Laser head packing size	392229cm.
Laser head packing gross weight	9kg
Standard single route wire feeding device packing Info	17Kg. 704065cm.
Double route wire feeding device packing Info	30Kg. 794570cm.
Usable laser source	Most of laser source

Handheld Welding Head Features and Advantages:

*Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
*The control system is very easy and requires little prior knowledge on the part of the operator.

*With safety lock function to ensure safety process.

*Internal structure of welding head with extremely simple design, easy to operate and maintenance.

*Adjustable Laser beam range: 0.5 - 5 mm.

*Support standard single route wire feeding.

*Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

*Laser beam scan mode: Various shape.

*Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).

*Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.

*Digital setting parameters in welding machine interface.

*Support different languages.

*All performance features can be customized to meet individual customer requirements.

Handheld Welding Head Product Show:

Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Laser welding head, control system, monitor, power supply and spare parts. With safety lock function to ensure safety process.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Standard single route wire feeding device

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

Paper Box Packing

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

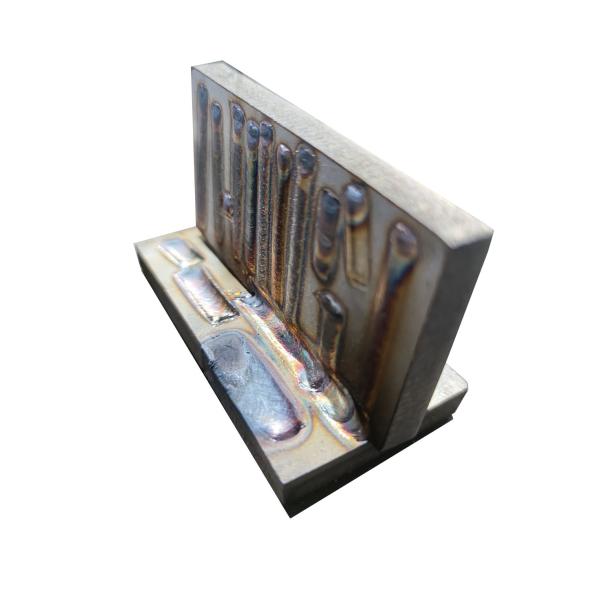

Welding Sample Show

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

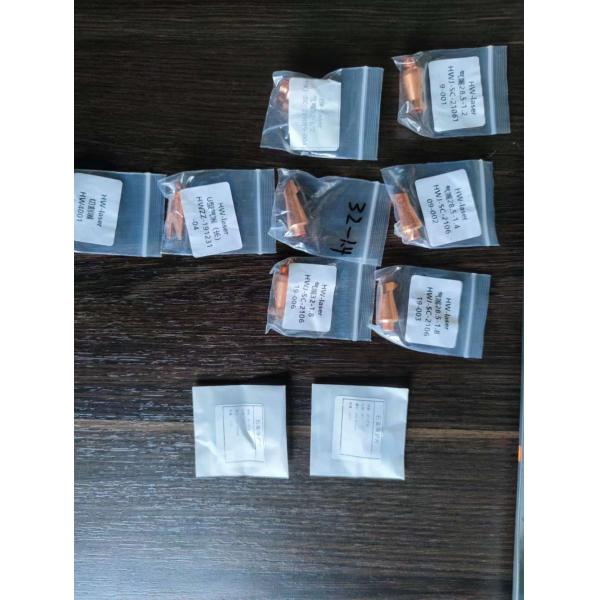

Nozzle

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding

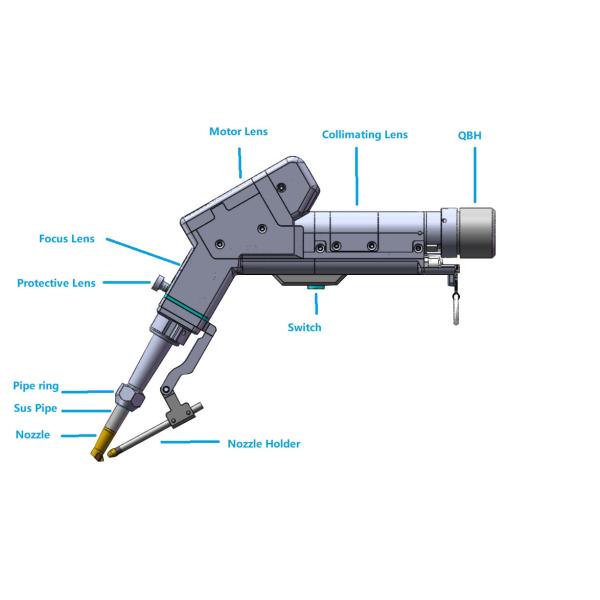

Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.

Water Cooling Handheld Laser Welding Gun For Aluminum Door Window Welding
